 ◘Detailed Descriptions of SINO TECH inorganic nano binders

1. Inorganic Hybrid Binders

Main Features:

bullet

Super- Weathering (Anti UV) & Heat Resistance

               Siloxane (Si-O-Si) Structure

                  -- Strong  Ion Bonding

                  -- Stable for UV & Heat than Organic Coatings

Chemical Structure
Bond Energy (Kcal/mole)
UV Absorption Wavelength
Organic Coating
C - O
83
290-390nm
C - C
83
C - H
98
Inorganic Coating
Si - O
101
270 nm
UV Energy
>85


When bond energy  is smaller than UV energy,

The film structure will be deteriorated by UV irradiation.

　

Solar Light Wavelength Bands on Earths

bullet

Anti Stain,  Self Cleaning Ability (Lotus Effect)

　 　

cilium

lotus Effect

Self Cleaning
bullet

Hard Coat with High   Abrasion  Resistance

bullet

Top Coat for Inorganic  & Organic  Substrates

　

Product Data Summary(1)

 Solution Properties
　 SN-502 SN-504 SN-506 SN-602(A)/(B)
 Appearance
Transparence or Translucence Solution
Clear Solution
 Main Ingredients
Silica, Metal oxide, Silane
Silica, Silane
 Other Additives

< 1%
<1%
 Components
1 Pack
2 Packs
 PH
4 - 6
7-9
 Solid content
15~ 22%
>20%
 Diluent
IPA/BCS/NBA
IPA/BCS/NBA
 Specific Gravity(25 ℃)
0.85 - 1.0
0.9~1.0
 Viscosity (cp) (25 ℃)
< 50
< 50
 Flash point
19℃
19℃
 Shelf Life (5-30 ℃)
6 Months
6 Months

　

Product Data Summary(2)

 Applied Methods
　 SN-502 SN-504 SN-506 SN-602(A)/(B)
 Finish
Gloss / Flat
Gloss / Flat
 Pigmented/Color
Color Chart
Color Chart
 Apply method
Spray/ Brush /Dip
Spray/ Dip
 Wet Film (W.F.T)
40 - 100 µ m
25 - 100 µ m
 Dry Film (D.F.T)
10-25 µ m
5-25 µ m

 Over Coatability

 YES YES

 Hardened condition

 180℃ / 20-30 mins. RT 3~7days, 180℃

/ 10-30 mins.

 80℃ / 10-30 mins.

/Post Cure RT 24hrs
 Pot Life(15-25 ℃)
-
< 16 hrs
 Applied Substrates
Iron & Non Iron metals /Wood/
Cements/Stones/glass/ceramic
Plastics

　

Product Data Summary(3)

 Film Properties
  SN-502 SN-504 SN-506
SN-602(A)/(B)
 Pencil Hardness
4~6H
3~6H
 Weathering
E
G
 Adhesion
E
E
 Stain resistance
E
E
 Heat resistance
400~600 ℃
300 ℃

 Gloss

 3rd 2nd 1st
G
 Scratch Resistance
E
E

E: Excellent,  G: Good,  F: Fair,  P: Poor            * Pencil hardness depend on which kind of substrate and film thickness

Coating  Examples By Inorganic Hybrid Binders

Nan- Hua  Dam, Tainan

PC Shack

1. Substrate : PC

2. Coating  System : SN-600 + A-type TiO2

3. Features : Transparent  & Self-Cleaning

Da- Jiao -Si Temple , Koashiung

Internal Wall

1. Substrate : concrete, wood,

2. Coating  System :

   (1) Primer : SN-100(pearl pigmented)

   (2) Top coat : SN-500(clear)

3. Features: Shine & Anti-Stain

Qi- Jin  Elementary School, Kaoshiung

Exterior Wall

1. Substrate : Concrete

2. Coating  System :

   (1) Primer : SN-100(pigmented)

   (2) Top coat : SN -500(clear)

3. Features: Anti-Stain

Xiao Liu qiu  Island, outside Taiwan

Side walk & Kiosk

1. Substrate : Woods

2. Coating  System :

   (1) Primer : B-66(Rohm & Hass, Colored)

   (2) Top coat : SN -500 (clear)

3. Features: Anti-Stain & Weathering

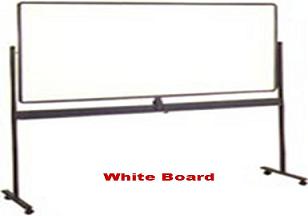

White Boards Making

1. Substrate : Cold-Rolled Steel

2.
